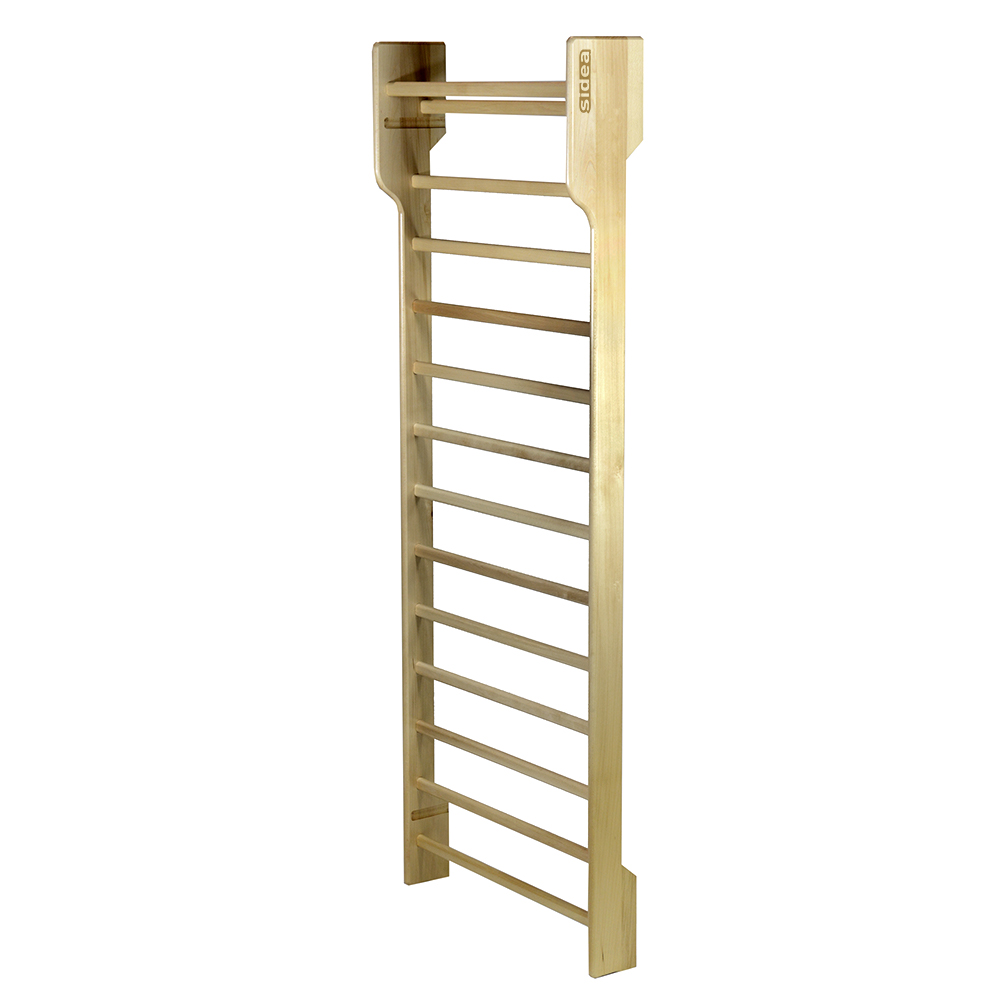

The 9100 Wall Bar is a traditional single-span Swedish wall bar with 14 oval rungs. It is crafted from kiln-dried European beechwood with a transparent finish. The wall bar is finely finished and smoothly sanded.
The product comes with four L-brackets and wood screws. However, the four wall-mounting dowels are not included, as they depend on the specific type of wall and chosen fixing method.
To ensure high-quality standards, especially for professional use, wooden wall bars like the 9100 and 9099 are fully assembled in the factory. This artisanal process ensures precise joints and glueing but requires the product to be transported as a single unit, which can involve higher costs, placement challenges, and increased risk of damage.
Installation Guidelines and Precautions:
- The wall bar is delivered as a single unit. Wall mounting, although straightforward, must be carried out by a professional technician who will evaluate the wall type, condition, and most importantly, its thickness to determine the required anchor length. Generally, four dowels with M8 screws of appropriate length for wall anchoring can be used. The anchor must support a load of 300 kg for the upper fixings and 150 kg for the lower fixings.
- Dowels are not included with the 9100 model.
- The 9100 wall bar comes with four L-brackets and wood screws.
- Floor support: It is essential that the base of the wall bar rests on the floor so that the wall anchors function primarily as anti-tilt supports rather than bearing the entire weight of the equipment and user.
Dimensions: 900 x 2500 mm
Weight: 22 kg
Maximum load: 110 kg
