Cable Station Premium – modular solution
The Cable Station Premium is a modular solution designed for gyms and personal training studios looking for a high-quality professional workstation. The construction care, technical solutions and stainless steel and aluminium components are derived directly from the 9088 All-in-One Rack Premium line, guaranteeing a superior finish.
Cable Station Premium – components
9089A Cable Station Weight Stack Unit – basic module with 90 kg weight stack
The core module of the Cable Station Premium modular solution is 9089A, which forms the basic structure of the system. 9089A consists of two 75 x 75 mm uprights, a 90 kg weight pack and protective covers. The front upright, made of stainless steel with a natural finish (no paintwork subject to wear), integrates the quick height adjustment system of the aluminium pulley of the Adjustable Pulley cable. The cable, which can be extended all the way to the ground, is rubberized and multi-directional thanks to a pivot system that ensures smooth and silent movement. The 2:1 transmission ratio allows a smooth and precise movement of the weight stack. Load selection is via the classic pivot system, connected to a retaining spring that prevents accidental loss of the selector. The 9089A also features a Lat Machine cable, transmission ratio 1:1, and a Dual Low Pulley, i.e. two independent low pulleys that can be used separately, transmission ratio 2:1, or simultaneously, transmission ratio 1:1. This configuration offers greater freedom of movement, allowing for independent bilateral or unilateral exercises, and more natural biomechanics, as each limb can move along its own traction plane.
Dimensions: 1435 x 235 x H 2365 mm. Weight: 198 kg
9089B Single Station Foot
The 9089B Single Station Foot is a structural tubular T-connection system designed to serve as a support base for the 9089A Weight Stack Unit. This component allows the station to stand upright in a stable manner, making it self-supporting and usable as a freestanding station, without the need for attachment to walls or external structures.
The Single Station Foot is however equipped with holes prepared for anchoring to the floor, a solution strongly recommended to guarantee maximum safety in use. Non-floor-mounted installation requires greater care when storing and using the tool, in order to avoid uses that do not comply with the instructions in the user manual, particularly with off-centre loading solutions.
Dimensions: 1305 x 130 x H 420 mm. Weight: 14 kg
9089C Attachment Set
Set of cable-connectable sockets and accessories consisting of:
- 1 textile anklet
- 1 x 600 mm triceps rope Ø28 mm
- 1 narrow combo socket 140×120 mm Ø28 mm
- 2 sockets with aluminium handles Ø35 mm with bearings
- 2 x 330 mm chains for cable extension and carabiners (190 mm without carabiners)
- 1 chain 465 mm for Lat machine cable extension
- Revolving Multi-Grip Bar – Lat bar 1225 mm, Ø25 mm with centre joint
- Revolving Short Bar – straight bar, 500 mm, Ø25 mm with centre joint
- V-Bar 615 mm, Ø25 mm
Weight: 13 kg
9089/1 Multi-position Pad
The 9089/1 Multi-Position Pad is a 400 x 290 mm, height- and tilt-adjustable cushion designed to provide stable and comfortable support while performing sitting or standing exercises, with secure support of the trunk and back.
It quickly connects to the stainless steel front post of the Weight Stack Unit 9089A, providing effective support in cable pulling exercises, thanks to the integrated leg rollers that ensure stability and control during execution.
The rollers, which can be easily removed without tools, also allow the pad to be used as a torso and back rest, making it an extremely versatile accessory.
A practical, intelligent and truly ‘smart’ component that significantly increases the functionality and convenience of the Cable Station, enhancing the training experience with a simple but surprisingly useful solution.
Dimensions: 810 x 505 x H 405 mm – 400 x 290 mm (seat), W 505 mm (rollers). Weight: 14 kg
9089/2 Add-On Load Kit
The kit allows you to increase the load of the Cable Station weight stack, offering two modes of use:
- by adding discs with 50 mm bore,
- or by connecting elastic bands, which allow you to vary the resistance curve and modify the dynamics of muscle work.
The kit consists of:
- 2 disc holders (diameter 50 mm, length 170 mm, with 130 mm loading space);
- 2 attachment pins for elastic bands.
The disc holders fit easily into the holes of the weight stack bricks and, thanks to an integrated magnetic system, remain stable and perfectly adhered during use.
Elastic pins attach to the frame of the Weight Stack Unit 9089A and are used in combination with the disc holders, allowing combined resistance (weight + elastic tension) for a more dynamic and progressive workout.
Weight: 3.8 kg
9089/3 1100 Link Kit

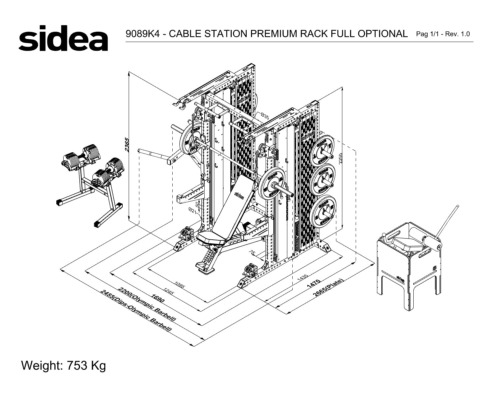

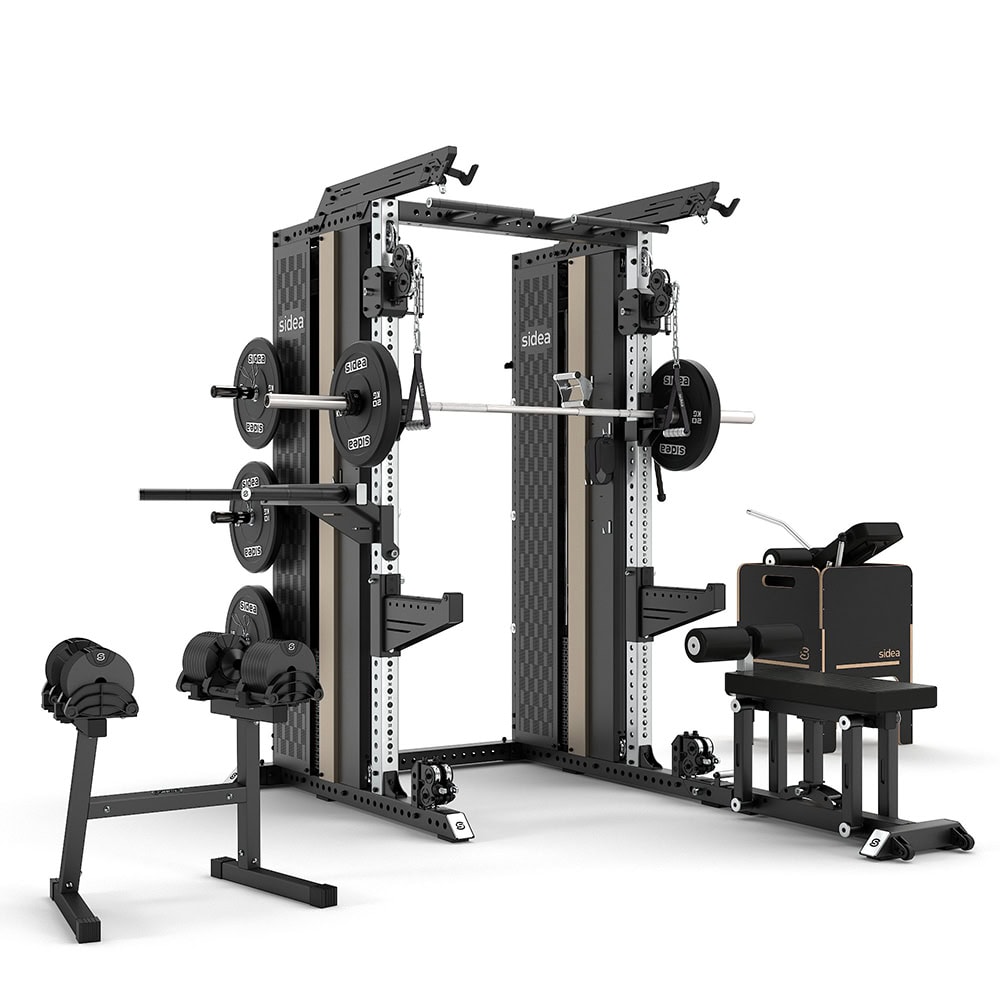

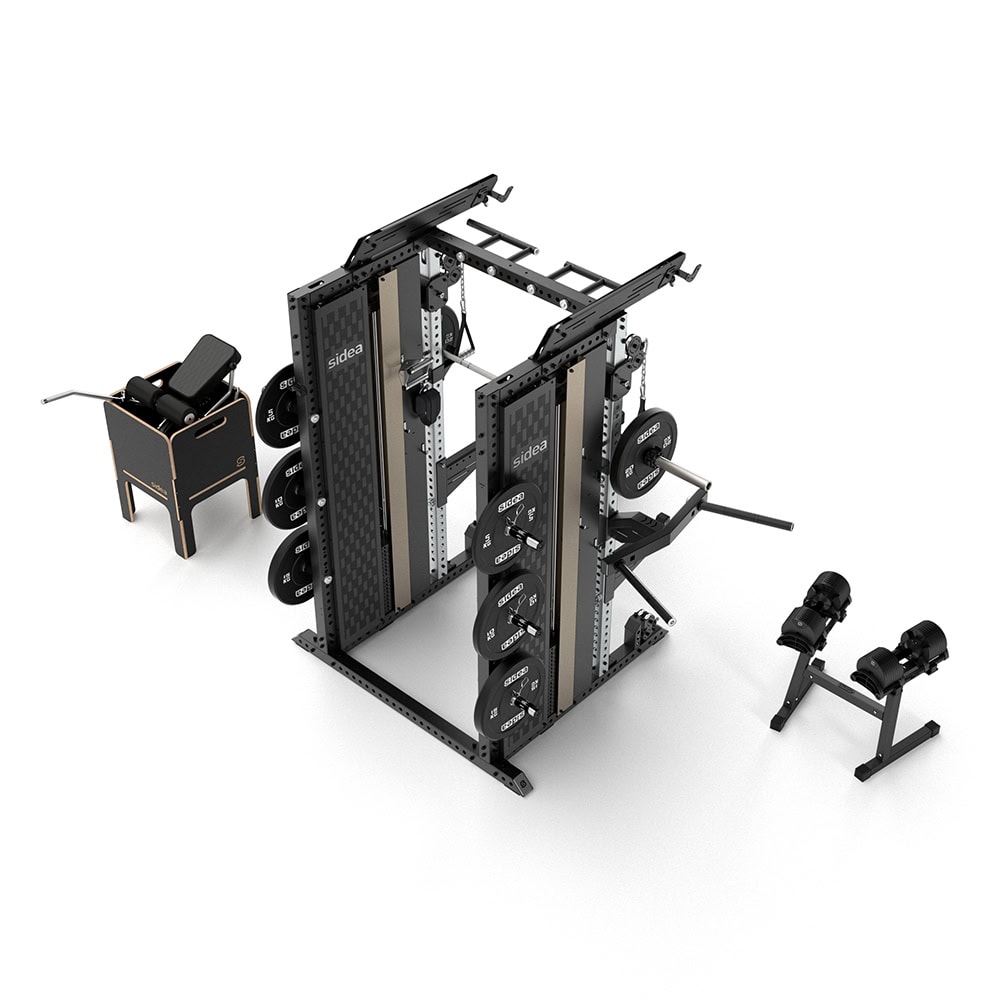

The 9089/3 1100 Link Kit is an 1100 mm long link bar designed to connect two 9089A Weight Stack Units, allowing a larger configuration to be created, transforming, with the addition of 9088/8 Roller J-Hooks, the Cable Station into an Olympic barbell rack, as is the case with the 9089K3 and 9089K4 versions.
The connection bar, made of 75 × 75 mm steel tubing, finished with paint, has a modular perforation that allows the 9088/1 All-in-One Rack Premium Pull-Up Bars to be mounted.
The kit also includes an 1100 mm long stabiliser joint bar, designed to connect the two 9089A Weight Stack Units at the bottom, increasing the structural rigidity and overall stability of the station.
Dimensions: 1690 x 75 x H 220 mm. Weight: 16.3 kg
9089/4 2400 Link Kit
he 9089/3 2400 Link Kit is a 2400 mm long splice bar designed to connect two 9089A Weight Stack Units, allowing a larger configuration to be created, turning the Cable Station into a Crossover Machine, as is the case with the 9089K5 version.
The connection bar, made of 75 × 75 mm steel tubing, finished with paint, has a modular perforation that allows the 9088/1 All-in-One Rack Premium Pull-Up Bars to be mounted.
As a Crossover Machine, the Cable Station utilises the Adjustable Pulley system, which is characterised by the convenient height adjustment and multi-directionality of the pulleys, which rotate freely on their own axis thanks to their respective pins. In order to ensure safety and correct mechanical operation, the pins do not rotate fully up to 180°, slightly limiting the lateral excursion. This feature causes the user to assume a position slightly forward of the centre of the structure, an ideal condition for maintaining constant tension on the cable and ensuring an optimal working trajectory.
Dimensions: 2550 x 85 x H 75 mm. Weight: 13.5 kg
9088/1 Pull-Up Bars
Pair of steel multi-pull bars, with deep knurling.
The split configuration of the handles allows a high degree of adjustability of the range, adapting to different types of exercise. The range is easily changed thanks to the clamping knobs, which allow the Bars to be removed without any tools.
Diameter 35 mm, length 445 mm, each. Weight: 2 x 2.65 kg. Maximum load: 160 kg
Only compatible with All-In-One Rack Premium
9088/2 Dip Handles
Pair of dip handles, diameter 42 mm, with deep knurling, fixed, by means of screw knob, on bracket for quick coupling to the uprights of Rack 9088.
Diameter 42 mm, length 450 mm. Weight: 11.1 kg. Maximum load: 160 kg
Only compatible with All-In-One Rack Premium
9088/6 Bench
Adjustable bench equipped with wheels, carrying handle and quick coupling system on the uprights feet of the 9088 Rack. Designed to offer support in cable pulling exercises with high loads, the 9088/6 incorporates leg holding rollers for securely locking the lower limbs.
Combined with the Foot Plate 9088/7, it allows the Rack 9088 to be transformed into a true Cable Pulley Machine with adjustable rowing height.
Dimensions: 1262 x 458 mm – Height: 530 mm (seat, 3 adjustments: 460 mm, 510 mm, 530 mm), 690 mm (leg rest rollers, h min: 607 mm – h max: 827 mm). Weight: 40 kg. Maximum load: 260 kg (including maximum user weight: 160 kg)
Only compatible with All-In-One Rack Premiummust be attached to the structure.
9088/7 Foot Plate
Footplate designed for performing rowing exercises with cable.
Dedicated optional component for the Rack 9088 All-In-One Premium.
Dimensions: 430 x 350 x depth 312 mm (variable according to footplate inclination). Weight: 9.5 kg
Only compatible with All-In-One Rack Premium
9088/8 Roller J-Hooks
Pair of ‘J’ shaped barbell supports designed for the perforated posts of the Rack 9088 All-in-One Premium.
Equipped with high-strength polymer rollers and guards, they allow precise, friction-free positioning of the balance, facilitating its centring before exercise.
Dimensions: 80 x 194 x H 215 mm. Weight: 2 x 2.85 kg. Maximum load: 250 kg
Only compatible with All-In-One Rack Premium
9088/9 Safety Spotters
Pair of safety arms designed for the perforated posts of the Rack 9088 All-in-One Premium.
The main function of the Safety Spotters is to intercept and support the free barbell in the event of non-execution or failure during exercises.
Dimensions: 553 x 56 x H 300 mm. Weight: 2 x 8.4 kg. Maximum load: 250 kg
Only compatible with All-In-One Rack Premium
9088/10 Bar Holder
Pair of holders designed for vertical storage of two Olympic barbells on the rear uprights of the 9088 All-In-One Premium Rack. Each holder is sized to accommodate barbells with Ø50 mm collars (Olympic standard) and can be easily positioned at the desired height, thanks to the rack’s hole insertion system.
Practical and safe solution for optimising space and keeping the training area tidy.
Dimensions: 122 x 84 x H 138 mm. Weight: 2 x 1.1 kg. Maximum load: 50 kg
Only compatible with All-In-One Rack Premium
9088/11 Plate Holders
Set consisting of 6 stainless steel plate holders, designed for installation on the rear uprights of the Rack 9088 All-In-One Premium. Each holder is compatible with discs with a Ø50 mm centre hole (Olympic standard) and allows neat, safe and easily accessible storage.
The set includes six disc retainer clips, which are useful for locking loads in place during use.
Dimensions: 277 x ⌀48 mm. Weight: 6 x 1.5 kg. Maximum load capacity of each plate rack: 100 kg.
Only compatible with All-In-One Rack Premium
