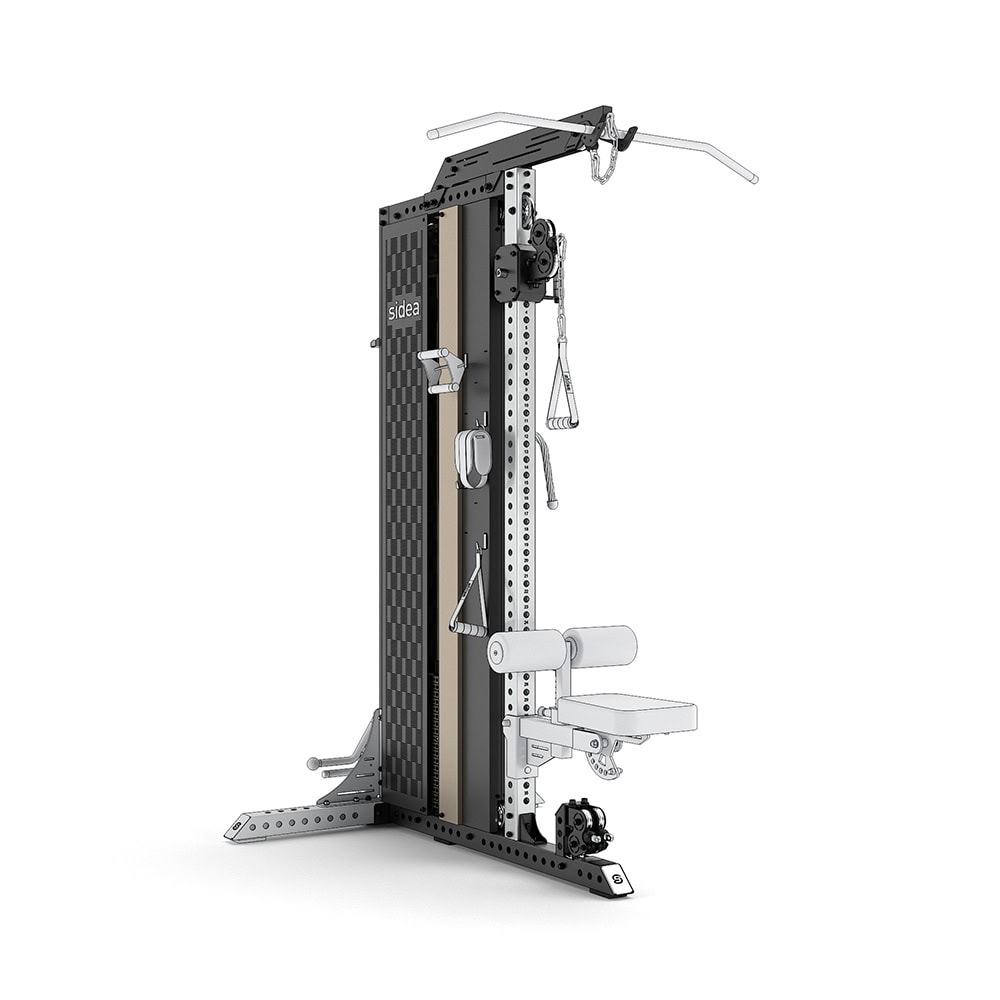

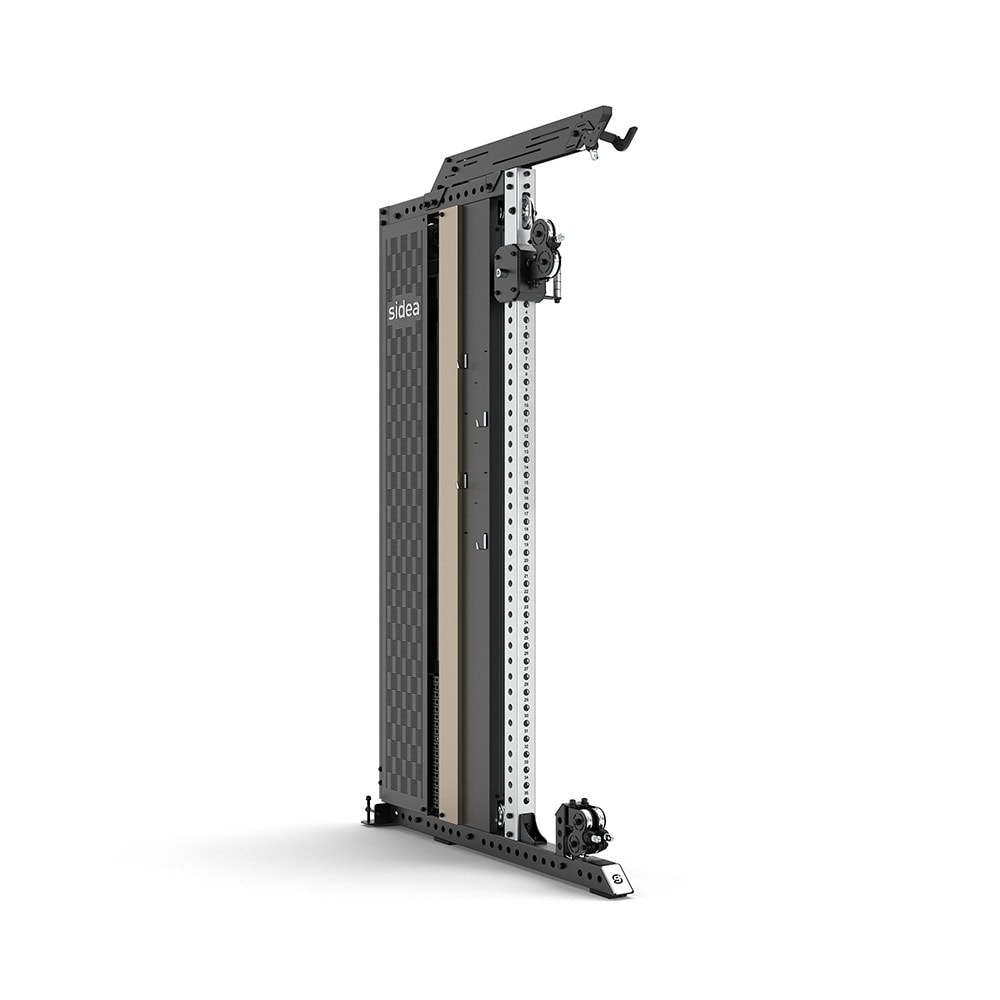

9089A Cable Station Weight Stack Unit – basic module with 90 kg weight stack
The core module of the Cable Station Premium modular solution is 9089A, which forms the basic structure of the system. 9089A consists of two 75 x 75 mm uprights, a 90 kg weight pack and protective covers. The front upright, made of stainless steel with a natural finish (no paintwork subject to wear), integrates the quick height adjustment system of the aluminium pulley of the Adjustable Pulley cable. The cable, which can be extended all the way to the ground, is rubberized and multi-directional thanks to a pivot system that ensures smooth and silent movement. The 2:1 transmission ratio allows a smooth and precise movement of the weight stack. Load selection is via the classic pivot system, connected to a retaining spring that prevents accidental loss of the selector. The 9089A also features a Lat Machine cable, transmission ratio 1:1, and a Dual Low Pulley, i.e. two independent low pulleys that can be used separately, transmission ratio 2:1, or simultaneously, transmission ratio 1:1. This configuration offers greater freedom of movement, allowing for independent bilateral or unilateral exercises, and more natural biomechanics, as each limb can move along its own traction plane.
Dimensions: 1435 x 235 x H 2365 mm. Weight: 198 kg
